Arduino Due and 2.2" TFT display with ILI9341 driver

   I recently purchased an Arduino Due development board to control 2.2" TFT color graphic display with ILI9341 driver.
   First, I use Arduino Uno then I use Arduino Mega for control this display. Between Arduino board (Uno or Mega) I use CD4050 for convert voltage level, because Uno and mega works with 5V logical level and display with ILI9341 driver works with 3.3V.
   After several attempts I chose ucglib library because is like u8glb library, that I used it at monochrome Nokia mobile displays (like Nokia 3310 display with 84x48 resolution using PCD8544 driver or Nokia 3410 display with 95x64 resolution using PCF8812 driver 3410) or at monochrome display with 128x64 resolution using ST7920 driver.
   I tested with very good results the ucglib library with Arduino Uno & Due for control the colour graphic display with 320x240 resolution using ILI9341 driver and I write few article in roumanian language, who is my native language.
   Also, I write an article in roumanian language with Arduino Due who control the colour graphic display with 320x240 resolution using ILI9341 driver: Arduino Due si afisajul QVGA de 2,2" (5,6cm) comandat de ILI9341.
   Now, I make a summary of that article for interested people...
   Arduino Due is more powerfull then other Arduino boards, becouse runs at 3.3V (maximum tolerate voltage at input or output pins is 3.3V).
   Using informations from article named How to Connect a ILI9341 Display I connect directly pins from Arduino Due and display, like in this picture:
   In my case, schematic is:

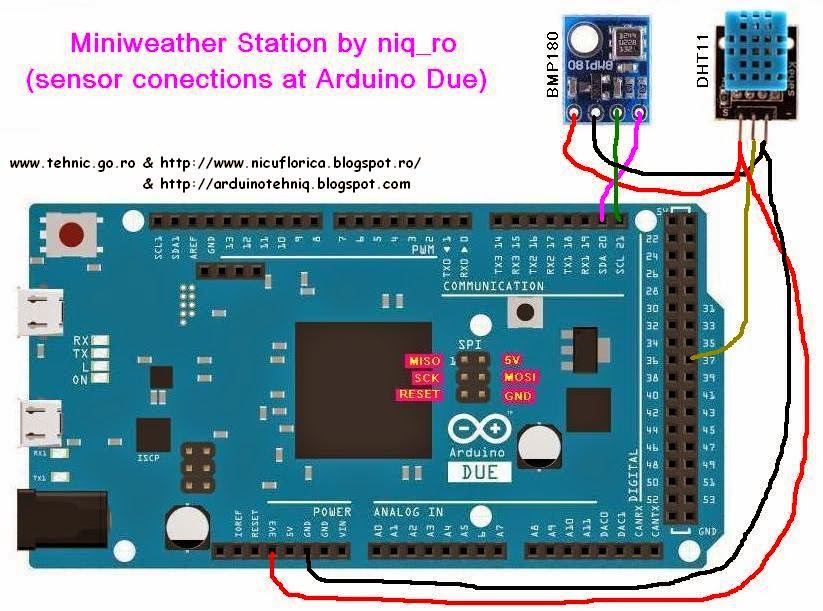

   First, I made a weather station with DTH11 sensor for humidity and BMP180 for pressure and temperature, schematic is:

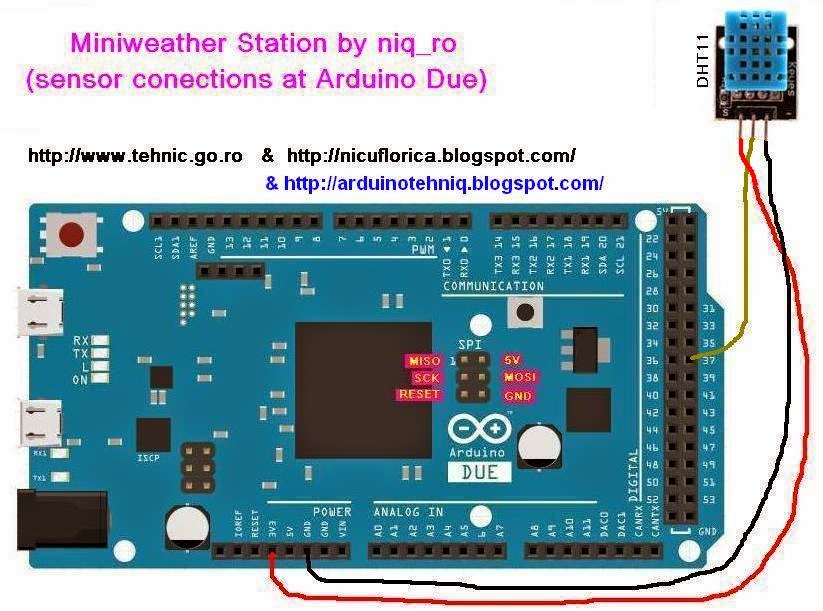

   Then, I simplified the sketch for using just DHT11 sensor for humidity and temperature:
   Practical, wirred is:
   My original sketck for full weather station with BMP180 and DHT11 is:
/*
original sketch by niq_ro from http://nicuflorica.blogspot.com using ucglib library
version for 2.2" TFT with ILI9341  - 2014.07.29, Craiova - Romania
use Universal uC Color Graphics Library from https://code.google.com/p/ucglib/
*/
#include <SPI.h>
#include "Ucglib.h"
//Ucglib_ILI9341_18x240x320_HWSPI ucg(/*cd=*/ 6 , /*cs=*/ 5, /*reset=*/ 4); // at Uno
//Ucglib_ILI9341_18x240x320_HWSPI ucg(/*cd=*/ 26 , /*cs=*/ 24, /*reset=*/ 22); // at Mega
//Ucglib_ILI9341_18x240x320_SWSPI ucg(/*sclk=*/ 52, /*data=*/ 51, /*cd=*/ 26 , /*cs=*/ 24, /*reset=*/ 22); //at Mega
//Ucglib_ILI9341_18x240x320_SWSPI ucg(/*sclk=*/ 76, /*data=*/ 75, /*cd=*/ 26 , /*cs=*/ 24, /*reset=*/ 22); //at Mega
Ucglib_ILI9341_18x240x320_HWSPI ucg(/*cd=*/ 26 , /*cs=*/ 24, /*reset=*/ 22); //at Mega and Due
/*

Due  |Mega | Uno | TFT - ILI9341
----------------------
D22  | D22 | D4  | RESET
D24  | D24 | D5  | CS
D26  | D26 | D6  | D/C
 ?   | ?   | LED (via 220 ohms resistor at 5V)
MOSI | D51 | D11 | MOSI
MISO | D50 | D12 | MISO
SCK  | D52 | D13 | SCK
-----------------------------
with CD4050 adapter or 10k resistor, power supply and logical levels is 3.3V
schematic: http://nicuflorica.blogspot.ro/2014/07/afisaj-grafic-color-qvga-de-22-cu.html
*/

#include <dht.h>
// from http://playground.arduino.cc/Main/DHTLib
dht DHT;

float t1, t2;
float t10, t20;
float t11, t21;
float t12, t22;
float t13, t23;
int h11, h12;

void setup() {
delay(1000);

ucg.begin(UCG_FONT_MODE_TRANSPARENT);
ucg.clearScreen();
ucg.setFont(ucg_font_ncenR14r);
ucg.setColor(255, 0, 255);
ucg.setColor(1, 255, 0,0);

  ucg.setRotate90();
  ucg.setColor(255, 255, 255); // culoare alba
  ucg.drawFrame(0,0,320,240); //
  ucg.setFont(ucg_font_courB24); // 20 pixel height
  ucg.setColor(255, 0, 0); // culoare rosie
  ucg.setPrintPos(60,30);
  ucg.print("Ministatie");
  ucg.setColor(0, 255, 0); // culoare verde
  ucg.setColor(0, 255, 0);
  ucg.setColor(0, 0, 255); // culoare albastru
  ucg.setPrintPos(17, 60);
  ucg.print("meteo cu DHT11");
//  ucg.setPrintPos(55, 90);
//  ucg.setColor(5, 255, 0); // culoare verde
//  ucg.print("si BMP180");
  ucg.setFont(ucg_font_fur17r); // 17 pixel height
  ucg.setColor(255, 255, 0); // culoare galbena
  ucg.setPrintPos(25,120);
  ucg.print("ecran grafic 2,2'' (5,6cm)");
  ucg.setFont(ucg_font_courB24); // 20 pixel height
  ucg.setColor(0, 255, 255); // culoare bleo
  ucg.setPrintPos(10,150);
  ucg.print("QVGA cu ILI9341");
  ucg.setColor(255, 0, 255); // culoare mov
  ucg.setPrintPos(20,180);
  ucg.print("versiune 4.5.0");
  ucg.setFont(ucg_font_fur17r); // 17 pixel height
  ucg.setColor(255, 255, 255); // culoare alb
  ucg.setPrintPos(60,210);
  ucg.print("realizare niq_ro");

delay(5000);
ucg.clearScreen();
t13=40.0;
h12=40.0;
}

void loop() {

 // DHT11 part
 int chk = DHT.read11(37);
 delay(1000);
// timeout;
 int h11 = DHT.humidity;
 if (DHT.humidity < 0) h11 = 0;

 int t12 = DHT.temperature;
int t15 = t12;
float t16 = 10*t15;
t16 = t16/10;

t16 = t12;
if (t16 != t13)
{
temperaturi(t16, t13, 20, 0); // temperature, old temperature, x,y
termometre(t16, 20);
}

if (h11 != h12)
{
// umiditate(h11, h12, 115, 90); // humidity, old humidity, x, y
 umiditate(h11, h12, 40, 180); // humidity, old humidity, x, y
 barca (h11, h12);
}




//}
delay (30000);
t13=t16;
h12=h11;
} // final de program, se revine de la inceput

void temperaturi(float t3, float t4, int ics, int igrec)
{
int t5 = t3;
int t6 = t4;
ucg.setFont(ucg_font_courB24);
if (t3*t4 < 0)
{ucg.setColor(0, 0, 0);
for (int qy = 39 ; qy < 60; qy++)
{
 ucg.drawHLine(ics+7, qy + igrec , 105);
}
}
int t51 = t5/10;
int t61 = t6/10;
ucg.setColor(0, 0, 0);
if (t51 != t61)
{
for (int qy = 39 ; qy < 60; qy++)
{
ucg.drawHLine(ics+28, qy + igrec , 21);
}
}
t5 = t3 - t51*10;
t6 = t4 - t61*10;
if (t5 != t6)
{
for (int qy = 39 ; qy < 60; qy++)
{
ucg.drawHLine(ics+49, qy + igrec , 21);
}
}
for (int qy = 39 ; qy < 60; qy++)
{
 ucg.drawHLine(ics+91, qy + igrec , 21);
}
ucg.setColor(255, 0, 0);
ucg.setPrintPos(10 + ics, 30 + igrec);
//ucg.print("t  :");
ucg.print("temperatura:");
ucg.setPrintPos(10 + ics, 60 + igrec);
if (t3 > 10.0) ucg.print("+");
else
 if (t3>0.0) ucg.print(" +");
else
 if (t3<0.0)
{
 t3=-t3;
 if (t3 > 10.0) ucg.print("-");
else
 if (t3 > 0.0) ucg.print(" -");
}
if (t3==0.0) ucg.print("  ");
ucg.print(t3,1);
ucg.print(" C");
ucg.setFont(ucg_font_fur17r);
ucg.setPrintPos(30 + ics, 35 + igrec);
//if (igrec == 0) ucg.print("int");
//else ucg.print("ext");
ucg.setPrintPos(115 + ics, 50 + igrec);
ucg.print("o");

ucg.setPrintPos(75 + ics, 60 + igrec);
ucg.print(",");


}

void termometre (float t, int ics1)
{
ucg.setColor(255, 255, 255);
ucg.drawFrame(ics1-4,10,9,200);
ucg.drawCircle(ics1,220,10,UCG_DRAW_ALL);
for (int a = 0; a < 10; a++)
{
ucg.drawLine(ics1-5,20+20*a,ics1-7,20+20*a);
ucg.drawLine(ics1+5,20+20*a,ics1+7,20+20*a);
}
ucg.drawLine(ics1-10,140,ics1+10,140);
ucg.setFont(ucg_font_courB24);
ucg.setPrintPos(13 + ics1, 149);
ucg.print("0 C");
ucg.setFont(ucg_font_fur17r);
ucg.setPrintPos(37 + ics1, 135);
ucg.print("o");
int lin = 140 - 2*t;
ucg.setColor(0, 0, 0);  // black
ucg.drawBox(ics1-2,21, 5, lin+5);
ucg.setColor(255, 0, 0);
ucg.drawDisc(ics1,220,8,UCG_DRAW_ALL);
ucg.drawBox(ics1-2,lin, 5, 210-lin);
}

void umiditate(int h3, int h4, int zet, int igrec1)
{
  ucg.setFont(ucg_font_courB24); // 20 pixel height

// sterg semnul ??
int h51 = h3/10;
int h61 = h4/10;

ucg.setColor(0, 0, 0);

// sterg zeci daca e cazul
if (h51 != h61)
{
//ucg.setColor(255, 255, 0);
ucg.setColor(0, 0, 0);
for (int qy = 39 ; qy < 60; qy++)
{
//  ucg.drawHLine(zet+28, qy + igrec1 , 21);
  ucg.drawHLine(zet+40, qy + igrec1, 42);
}
}
  int h5 = h3 - h51*10;
  int h6 = h4 - h61*10;

// sterg unitati daca e cazul
//if ((t5 != t6) || (t5-t6>0.2))
if (h5 != h6)
{
//ucg.setColor(0, 255, 0);
ucg.setColor(0, 0, 0);
for (int qy = 39 ; qy < 60; qy++)
{
  ucg.drawHLine(zet+79, qy + igrec1 , 21);
}
}

 ucg.setColor(0, 255, 255);
 ucg.setPrintPos(zet, 30 + igrec1);
 ucg.print("umiditate:");


//ucg.setFont(ucg_font_fub42n); // 20 pixel height
ucg.setPrintPos(40 + zet, 60 + igrec1);
//if (h3 > 10) ucg.print("+");
if (h3 > 10) ucg.print(" ");
else
{
//ucg.setColor(255, 255, 255);
ucg.setColor(0, 0, 0);
for (int qy = 39 ; qy < 60; qy++)
{
  ucg.drawHLine(zet+40, qy + igrec1 , 42);
}
if (igrec1 <30) ucg.setColor(255, 255, 0);
else ucg.setColor(0, 255, 255);
ucg.setPrintPos(61 + zet, 60 + igrec1);
//ucg.print("+");
ucg.print(" ");
}
 ucg.print(h3);
 ucg.print("%");
}


void barca (int h, int h2) // new humidity, old humidity.,
{
int xx = 280;
int yy = 230;

//sterg barca
//ucg.setColor(100,100,100);
ucg.setColor(0,0,0);
ucg.drawBox(xx-25, yy-20-h2, 50, 30);


//sterg apa
//ucg.setColor(125, 125, 125);
ucg.setColor(0, 0, 0);
ucg.drawBox(xx-35, yy+10-h2, 70, h2-h);

//desenez apa
ucg.setColor(0, 255, 255);
ucg.drawBox(xx-35, yy+10-h, 70, h);

//desenz barcuta;
//desenez carena
ucg.setColor(255, 255, 0);
ucg.drawBox(xx-20, yy-h, 40, 10);
ucg.drawTriangle(xx-25, yy-h, xx-20, yy-h, xx-20, yy+10-h);
ucg.drawTriangle(xx+25, yy-h, xx+20, yy-h, xx+20, yy+10-h);
//desenez catarg
ucg.drawBox(xx-1, yy-20-h, 2, 20);
//desenez velele
ucg.setColor(0, 0, 255); // vela albastra
ucg.drawTriangle(xx+2, yy-20-h, xx+2, yy-h, xx+20, yy-h);
ucg.setColor(255, 0, 0); // vela rosie
ucg.drawTriangle(xx-2, yy-15-h, xx-2, yy-h, xx-20, yy-h);
}


/
   Sketch for simplified weather station just DHT11 is:
/*
original sketch by niq_ro from http://nicuflorica.blogspot.com using ucglib library
version for 2.2" TFT with ILI9341  - 2014.07.29, Craiova - Romania
use Universal uC Color Graphics Library from https://code.google.com/p/ucglib/
*/
#include <SPI.h>
#include "Ucglib.h"
//Ucglib_ILI9341_18x240x320_HWSPI ucg(/*cd=*/ 6 , /*cs=*/ 5, /*reset=*/ 4); // at Uno
//Ucglib_ILI9341_18x240x320_HWSPI ucg(/*cd=*/ 26 , /*cs=*/ 24, /*reset=*/ 22); // at Mega
//Ucglib_ILI9341_18x240x320_SWSPI ucg(/*sclk=*/ 52, /*data=*/ 51, /*cd=*/ 26 , /*cs=*/ 24, /*reset=*/ 22); //at Mega
//Ucglib_ILI9341_18x240x320_SWSPI ucg(/*sclk=*/ 76, /*data=*/ 75, /*cd=*/ 26 , /*cs=*/ 24, /*reset=*/ 22); //at Mega
Ucglib_ILI9341_18x240x320_HWSPI ucg(/*cd=*/ 26 , /*cs=*/ 24, /*reset=*/ 22); //at Mega and Due
/*

Due  |Mega | Uno | TFT - ILI9341
----------------------
D22  | D22 | D4  | RESET
D24  | D24 | D5  | CS
D26  | D26 | D6  | D/C
 ?   | ?   | LED (via 220 ohms resistor at 5V)
MOSI | D51 | D11 | MOSI
MISO | D50 | D12 | MISO
SCK  | D52 | D13 | SCK
-----------------------------
with CD4050 adapter or 10k resistor, power supply and logical levels is 3.3V
schematic: http://nicuflorica.blogspot.ro/2014/07/afisaj-grafic-color-qvga-de-22-cu.html
*/

#include <dht.h>
// from http://playground.arduino.cc/Main/DHTLib
dht DHT;

float t1, t2;
float t10, t20;
float t11, t21;
float t12, t22;
float t13, t23;
int h11, h12;

void setup() {
delay(1000);

ucg.begin(UCG_FONT_MODE_TRANSPARENT);
ucg.clearScreen();
ucg.setFont(ucg_font_ncenR14r);
ucg.setColor(255, 0, 255);
ucg.setColor(1, 255, 0,0);

  ucg.setRotate90();
  ucg.setColor(255, 255, 255); // culoare alba
  ucg.drawFrame(0,0,320,240); //
  ucg.setFont(ucg_font_courB24); // 20 pixel height
  ucg.setColor(255, 0, 0); // culoare rosie
  ucg.setPrintPos(60,30);
  ucg.print("Ministatie");
  ucg.setColor(0, 255, 0); // culoare verde
  ucg.setColor(0, 255, 0);
  ucg.setColor(0, 0, 255); // culoare albastru
  ucg.setPrintPos(17, 60);
  ucg.print("meteo cu DHT11");
//  ucg.setPrintPos(55, 90);
//  ucg.setColor(5, 255, 0); // culoare verde
//  ucg.print("si BMP180");
  ucg.setFont(ucg_font_fur17r); // 17 pixel height
  ucg.setColor(255, 255, 0); // culoare galbena
  ucg.setPrintPos(25,120);
  ucg.print("ecran grafic 2,2'' (5,6cm)");
  ucg.setFont(ucg_font_courB24); // 20 pixel height
  ucg.setColor(0, 255, 255); // culoare bleo
  ucg.setPrintPos(10,150);
  ucg.print("QVGA cu ILI9341");
  ucg.setColor(255, 0, 255); // culoare mov
  ucg.setPrintPos(20,180);
  ucg.print("versiune 4.5.0");
  ucg.setFont(ucg_font_fur17r); // 17 pixel height
  ucg.setColor(255, 255, 255); // culoare alb
  ucg.setPrintPos(60,210);
  ucg.print("realizare niq_ro");

delay(5000);
ucg.clearScreen();
t13=40.0;
h12=40.0;
}

void loop() {

 // DHT11 part
 int chk = DHT.read11(37);
 delay(1000);
// timeout;
 int h11 = DHT.humidity;
 if (DHT.humidity < 0) h11 = 0;

 int t12 = DHT.temperature;
int t15 = t12;
float t16 = 10*t15;
t16 = t16/10;

t16 = t12;
if (t16 != t13)
{
temperaturi(t16, t13, 20, 0); // temperature, old temperature, x,y
termometre(t16, 20);
}

if (h11 != h12)
{
// umiditate(h11, h12, 115, 90); // humidity, old humidity, x, y
 umiditate(h11, h12, 40, 180); // humidity, old humidity, x, y
 barca (h11, h12);
}




//}
delay (30000);
t13=t16;
h12=h11;
} // final de program, se revine de la inceput

void temperaturi(float t3, float t4, int ics, int igrec)
{
int t5 = t3;
int t6 = t4;
ucg.setFont(ucg_font_courB24);
if (t3*t4 < 0)
{ucg.setColor(0, 0, 0);
for (int qy = 39 ; qy < 60; qy++)
{
 ucg.drawHLine(ics+7, qy + igrec , 105);
}
}
int t51 = t5/10;
int t61 = t6/10;
ucg.setColor(0, 0, 0);
if (t51 != t61)
{
for (int qy = 39 ; qy < 60; qy++)
{
ucg.drawHLine(ics+28, qy + igrec , 21);
}
}
t5 = t3 - t51*10;
t6 = t4 - t61*10;
if (t5 != t6)
{
for (int qy = 39 ; qy < 60; qy++)
{
ucg.drawHLine(ics+49, qy + igrec , 21);
}
}
for (int qy = 39 ; qy < 60; qy++)
{
 ucg.drawHLine(ics+91, qy + igrec , 21);
}
ucg.setColor(255, 0, 0);
ucg.setPrintPos(10 + ics, 30 + igrec);
//ucg.print("t  :");
ucg.print("temperatura:");
ucg.setPrintPos(10 + ics, 60 + igrec);
if (t3 > 10.0) ucg.print("+");
else
 if (t3>0.0) ucg.print(" +");
else
 if (t3<0.0)
{
 t3=-t3;
 if (t3 > 10.0) ucg.print("-");
else
 if (t3 > 0.0) ucg.print(" -");
}
if (t3==0.0) ucg.print("  ");
ucg.print(t3,1);
ucg.print(" C");
ucg.setFont(ucg_font_fur17r);
ucg.setPrintPos(30 + ics, 35 + igrec);
//if (igrec == 0) ucg.print("int");
//else ucg.print("ext");
ucg.setPrintPos(115 + ics, 50 + igrec);
ucg.print("o");

ucg.setPrintPos(75 + ics, 60 + igrec);
ucg.print(",");


}

void termometre (float t, int ics1)
{
ucg.setColor(255, 255, 255);
ucg.drawFrame(ics1-4,10,9,200);
ucg.drawCircle(ics1,220,10,UCG_DRAW_ALL);
for (int a = 0; a < 10; a++)
{
ucg.drawLine(ics1-5,20+20*a,ics1-7,20+20*a);
ucg.drawLine(ics1+5,20+20*a,ics1+7,20+20*a);
}
ucg.drawLine(ics1-10,140,ics1+10,140);
ucg.setFont(ucg_font_courB24);
ucg.setPrintPos(13 + ics1, 149);
ucg.print("0 C");
ucg.setFont(ucg_font_fur17r);
ucg.setPrintPos(37 + ics1, 135);
ucg.print("o");
int lin = 140 - 2*t;
ucg.setColor(0, 0, 0);  // black
ucg.drawBox(ics1-2,21, 5, lin+5);
ucg.setColor(255, 0, 0);
ucg.drawDisc(ics1,220,8,UCG_DRAW_ALL);
ucg.drawBox(ics1-2,lin, 5, 210-lin);
}

void umiditate(int h3, int h4, int zet, int igrec1)
{
  ucg.setFont(ucg_font_courB24); // 20 pixel height

// sterg semnul ??
int h51 = h3/10;
int h61 = h4/10;

ucg.setColor(0, 0, 0);

// sterg zeci daca e cazul
if (h51 != h61)
{
//ucg.setColor(255, 255, 0);
ucg.setColor(0, 0, 0);
for (int qy = 39 ; qy < 60; qy++)
{
//  ucg.drawHLine(zet+28, qy + igrec1 , 21);
  ucg.drawHLine(zet+40, qy + igrec1, 42);
}
}
  int h5 = h3 - h51*10;
  int h6 = h4 - h61*10;

// sterg unitati daca e cazul
//if ((t5 != t6) || (t5-t6>0.2))
if (h5 != h6)
{
//ucg.setColor(0, 255, 0);
ucg.setColor(0, 0, 0);
for (int qy = 39 ; qy < 60; qy++)
{
  ucg.drawHLine(zet+79, qy + igrec1 , 21);
}
}

 ucg.setColor(0, 255, 255);
 ucg.setPrintPos(zet, 30 + igrec1);
 ucg.print("umiditate:");


//ucg.setFont(ucg_font_fub42n); // 20 pixel height
ucg.setPrintPos(40 + zet, 60 + igrec1);
//if (h3 > 10) ucg.print("+");
if (h3 > 10) ucg.print(" ");
else
{
//ucg.setColor(255, 255, 255);
ucg.setColor(0, 0, 0);
for (int qy = 39 ; qy < 60; qy++)
{
  ucg.drawHLine(zet+40, qy + igrec1 , 42);
}
if (igrec1 <30) ucg.setColor(255, 255, 0);
else ucg.setColor(0, 255, 255);
ucg.setPrintPos(61 + zet, 60 + igrec1);
//ucg.print("+");
ucg.print(" ");
}
 ucg.print(h3);
 ucg.print("%");
}


void barca (int h, int h2) // new humidity, old humidity.,
{
int xx = 280;
int yy = 230;

//sterg barca
//ucg.setColor(100,100,100);
ucg.setColor(0,0,0);
ucg.drawBox(xx-25, yy-20-h2, 50, 30);


//sterg apa
//ucg.setColor(125, 125, 125);
ucg.setColor(0, 0, 0);
ucg.drawBox(xx-35, yy+10-h2, 70, h2-h);

//desenez apa
ucg.setColor(0, 255, 255);
ucg.drawBox(xx-35, yy+10-h, 70, h);

//desenz barcuta;
//desenez carena
ucg.setColor(255, 255, 0);
ucg.drawBox(xx-20, yy-h, 40, 10);
ucg.drawTriangle(xx-25, yy-h, xx-20, yy-h, xx-20, yy+10-h);
ucg.drawTriangle(xx+25, yy-h, xx+20, yy-h, xx+20, yy+10-h);
//desenez catarg
ucg.drawBox(xx-1, yy-20-h, 2, 20);
//desenez velele
ucg.setColor(0, 0, 255); // vela albastra
ucg.drawTriangle(xx+2, yy-20-h, xx+2, yy-h, xx+20, yy-h);
ucg.setColor(255, 0, 0); // vela rosie
ucg.drawTriangle(xx-2, yy-15-h, xx-2, yy-h, xx-20, yy-h);
}


/
   I made two movies for understand better what is on display:
- weather station with Arduino Due on ILI9341 2.2" TFT display
   Information are displayed in the roumanian language, but you may change easy...
   For upload sketch for Arduino Due must update Arduino IDE software; now current version is Arduino IDE 1.5.7. BETA.

   I wait with interest your views and comments!!!
Posted by at
Labels: , , , ,
Location: Craiova, România

19 comments:

  1. AnonymousNovember 30, 2014 at 2:02 PM

    Hey, why an error?
    Arduino: 1.5.8 (Windows 7), Board: "Arduino Due (Programming Port)"

    Build options changed, rebuilding all

    In file included from sketch_nov30a.ino:6:0:
    C:\Program Files\Arduino\libraries\SPI/SPI.h: In static member function 'static byte SPIClass::transfer(byte)':
    C:\Program Files\Arduino\libraries\SPI/SPI.h:56:3: error: 'SPDR' was not declared in this scope
    SPDR = _data;
    ^
    C:\Program Files\Arduino\libraries\SPI/SPI.h:57:12: error: 'SPSR' was not declared in this scope
    while (!(SPSR & _BV(SPIF)))
    ^
    C:\Program Files\Arduino\libraries\SPI/SPI.h:57:23: error: 'SPIF' was not declared in this scope
    while (!(SPSR & _BV(SPIF)))
    ^
    C:\Program Files\Arduino\libraries\SPI/SPI.h:57:27: error: '_BV' was not declared in this scope
    while (!(SPSR & _BV(SPIF)))
    ^
    C:\Program Files\Arduino\libraries\SPI/SPI.h: In static member function 'static void SPIClass::attachInterrupt()':
    C:\Program Files\Arduino\libraries\SPI/SPI.h:63:3: error: 'SPCR' was not declared in this scope
    SPCR |= _BV(SPIE);
    ^
    C:\Program Files\Arduino\libraries\SPI/SPI.h:63:15: error: 'SPIE' was not declared in this scope
    SPCR |= _BV(SPIE);
    ^
    C:\Program Files\Arduino\libraries\SPI/SPI.h:63:19: error: '_BV' was not declared in this scope
    SPCR |= _BV(SPIE);
    ^
    C:\Program Files\Arduino\libraries\SPI/SPI.h: In static member function 'static void SPIClass::detachInterrupt()':
    C:\Program Files\Arduino\libraries\SPI/SPI.h:67:3: error: 'SPCR' was not declared in this scope
    SPCR &= ~_BV(SPIE);
    ^
    C:\Program Files\Arduino\libraries\SPI/SPI.h:67:16: error: 'SPIE' was not declared in this scope
    SPCR &= ~_BV(SPIE);
    ^
    C:\Program Files\Arduino\libraries\SPI/SPI.h:67:20: error: '_BV' was not declared in this scope
    SPCR &= ~_BV(SPIE);
    ^
    Ошибка компиляции.

    This report would have more information with
    "Show verbose output during compilation"
    enabled in File > Preferences.

    ReplyDelete
  2. AnonymousNovember 30, 2014 at 9:08 PM

    With this problem figured out, but there was another library DHT
    Arduino: 1.5.8 (Windows 7), Board: "Arduino Due (Programming Port)"

    In file included from C:\Program Files (x86)\Arduino\hardware\arduino\sam\cores\arduino/Arduino.h:189:0,
    from C:\Users\vovanw7\Documents\Arduino\libraries\DHTlib\dht.h:19,
    from C:\Users\vovanw7\Documents\Arduino\libraries\DHTlib\dht.cpp:37:
    C:\Users\vovanw7\Documents\Arduino\libraries\DHTlib\dht.cpp: In member function 'int dht::_readSensor(uint8_t, uint8_t, uint8_t)':
    C:\Program Files (x86)\Arduino\hardware\arduino\sam\variants\arduino_due_x/variant.h:62:65: error: invalid conversion from 'Pio*' to 'uint8_t {aka unsigned char}' [-fpermissive]
    #define digitalPinToPort(P) ( g_APinDescription[P].pPort )
    ^
    C:\Users\vovanw7\Documents\Arduino\libraries\DHTlib\dht.cpp:116:20: note: in expansion of macro 'digitalPinToPort'
    uint8_t port = digitalPinToPort(pin);
    ^
    C:\Program Files (x86)\Arduino\hardware\arduino\sam\variants\arduino_due_x/variant.h:66:44: error: base operand of '->' is not a pointer
    #define portInputRegister(port) ( &(port->PIO_PDSR) )
    ^
    C:\Users\vovanw7\Documents\Arduino\libraries\DHTlib\dht.cpp:117:29: note: in expansion of macro 'portInputRegister'
    volatile uint8_t *PIR = portInputRegister(port);
    ^
    Ошибка компиляции.

    This report would have more information with
    "Show verbose output during compilation"
    enabled in File > Preferences.

    ReplyDelete
    Replies
    1. niq_roNovember 30, 2014 at 9:33 PM

      inside sketch is put a link for download librari DHT for Arduino Due: http://playground.arduino.cc/Main/DHTLib
      try it ;)

      Delete
  3. AnonymousDecember 1, 2014 at 6:52 PM

    Поставил библиотеку по этой ссылке:http://playground.arduino.cc/Main/DHTLib
    Ошибка все равно появляется

    ReplyDelete
  4. AnonymousDecember 1, 2014 at 6:53 PM

    Put the library at this link:http://playground.arduino.cc/Main/DHTLib
    The error still appears

    ReplyDelete
  5. AnonymousDecember 1, 2014 at 7:25 PM

    On Mega2560 compiles fine, on no DUE

    ReplyDelete
  6. niq_roDecember 1, 2014 at 9:58 PM

    try: https://github.com/RobTillaart/Arduino/tree/master/libraries/DHTlib

    ReplyDelete
  7. niq_roDecember 2, 2014 at 9:18 AM

    I try sketch using another computer and is ok.. if you don't have same luck as me, please give me your email or sens me a mail (in at contact data)

    ReplyDelete
  8. AnonymousDecember 2, 2014 at 6:56 PM

    Library installed on your new link https://github.com/RobTillaart/Arduino/tree/master/libraries/DHTlib, goes all the same error,my mail vovanxp@rambler.ru

    ReplyDelete
  9. AnonymousDecember 2, 2014 at 9:01 PM

    Success! To use the library DHT version 0.1.13

    ReplyDelete
  10. AnonymousJanuary 29, 2016 at 7:48 PM

    Hi can You help me with this errors? What to do?


    C:\Users\L\Documents\Arduino\aaa\aaa.ino: In function 'void setup()':

    aaa:52: error: 'ucg_font_ncenR14r' was not declared in this scope

    ucg.setFont(ucg_font_ncenR14r);

    ^

    aaa:59: error: 'ucg_font_courB24' was not declared in this scope

    ucg.setFont(ucg_font_courB24); // 20 pixel height

    ^

    aaa:71: error: 'ucg_font_fur17r' was not declared in this scope

    ucg.setFont(ucg_font_fur17r); // 17 pixel height

    ^

    C:\Users\L\Documents\Arduino\aaa\aaa.ino: In function 'void temperaturi(float, float, int, int)':

    aaa:146: error: 'ucg_font_courB24' was not declared in this scope

    ucg.setFont(ucg_font_courB24);

    ^

    aaa:196: error: 'ucg_font_fur17r' was not declared in this scope

    ucg.setFont(ucg_font_fur17r);

    ^

    C:\Users\L\Documents\Arduino\aaa\aaa.ino: In function 'void termometre(float, int)':

    aaa:220: error: 'ucg_font_courB24' was not declared in this scope

    ucg.setFont(ucg_font_courB24);

    ^

    aaa:223: error: 'ucg_font_fur17r' was not declared in this scope

    ucg.setFont(ucg_font_fur17r);

    ^

    C:\Users\L\Documents\Arduino\aaa\aaa.ino: In function 'void umiditate(int, int, int, int)':

    aaa:236: error: 'ucg_font_courB24' was not declared in this scope

    ucg.setFont(ucg_font_courB24); // 20 pixel height

    ^

    C:\Users\L\Documents\Arduino\aaa\aaa.ino: In function 'void presiune(int, int, int, int)':

    aaa:335: error: 'ucg_font_courB24' was not declared in this scope

    ucg.setFont(ucg_font_courB24); // 20 pixel height

    ^

    exit status 1
    'ucg_font_ncenR14r' was not declared in this scope

    ReplyDelete
    Replies
    1. niq_roJanuary 29, 2016 at 10:21 PM

      you have SPI & Ucglib libraries?

      Delete
    2. AnonymousJanuary 30, 2016 at 12:34 AM

      SPI yes, and Ucglib lib. I have this.

      https://github.com/olikraus/Ucglib_Arduino/releases/tag/v1.3.3

      Delete
    3. AnonymousJanuary 30, 2016 at 12:58 AM

      I think it is something about the Ucglib libraries and fonts, but I don't know what ...?

      Delete
  11. niq_roJanuary 31, 2016 at 7:14 PM

    try to use various version of Arduino Ide, eg, if you use 1.6.5 try with 1.0.4..

    ReplyDelete
  12. AnonymousFebruary 6, 2018 at 3:08 PM

    The Fix for aaa:52: error: 'ucg_font_ncenR14r' was not declared in this scope

    ucg.setFont(ucg_font_ncenR14r);

    CHANGE ucg.setFont(ucg_font_ncenR14r); TO ucg.setFont(ucg_font_ncenR14_tr)
    (See https://github.com/olikraus/ucglib/wiki/reference#migration-from-v101-to-v102) Rename Fonts r changed to _tr.

    Good luck,
    Mike

    ReplyDelete
  13. AnonymousFebruary 28, 2018 at 4:16 PM

    yes for font r become _tr, and whatabout font_courB24 ?
    thanks

    ReplyDelete
  14. AnonymousMarch 4, 2018 at 10:40 AM

    Try changing ucg.setFont(ucg_font_courB24); TO ucg.setFont(ucg_font_courB24_tf);
    I do not know if this works as I have not tried nor verified it.

    Good luck

    ReplyDelete
  15. AnonymousApril 17, 2018 at 2:20 PM

    Font " ucg_font_courB24_tf " verified to work OK

    Good luck

    ReplyDelete

Subscribe to: Post Comments (Atom)
