Schematic is very simple, with few components:
A realistic 3D of my board is made with Eagle PCB software, too:
Note: ATmega328P-PU must have Arduino booloader on it...
Schematic for conection between Arduiniq board and USB to TTL FTDI module is:
Monday, September 22, 2014
Arduiniq ver.3.0 (homemade compatible Arduino board)
In case of dangerous experiments for an original Arduino board, like big consumption, high voltage at input module, etc I design and use more boards who use ATmega328P-PU microcontroller, but this is compatible with most official shields.
Schematic is very simple, with few components:

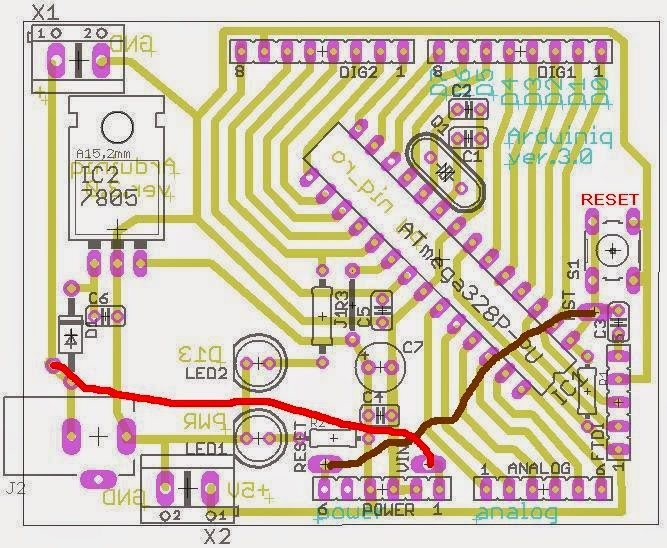

Board with components is:
Schematic and boards are designed with Eagle PCB software and you can download sch and brd files for made boards by yourself.
A realistic 3D of my board is made with Eagle PCB software, too:
1st update 24.9.2014)
Schematic for conection between Arduiniq board and USB to TTL FTDI module is:
Schematic is very simple, with few components:
A realistic 3D of my board is made with Eagle PCB software, too:
Schematic for conection between Arduiniq board and USB to TTL FTDI module is:
